ZEISS Precision Shooting

ZEISS Pro-Series MAX-DUTY Tripod Kits

Built for speed and stability.

In precision rifle competition, it comes down to the final score and time of completion to determine the winner. There are no excuses! Knowing this, ZEISS introduces the Pro-Series Tripod Kit – MAX-DUTY model. It offers massive 44 mm diameter, 10-layer carbon fiber legs, coupled with an exclusive and highly innovative single-point leg adjustment system for fast deployment and stowing of the three-section leg(s). This saves approximately 7-15 seconds of valuable set-up time for each respective stage of the competition.

Carbon fiber tripod with adjustable legs and a fluid pan head, designed for professional camera support, shown on a white background.
Carbon fiber tripod with adjustable legs and a fluid pan head, designed for professional camera support, shown on a white background.

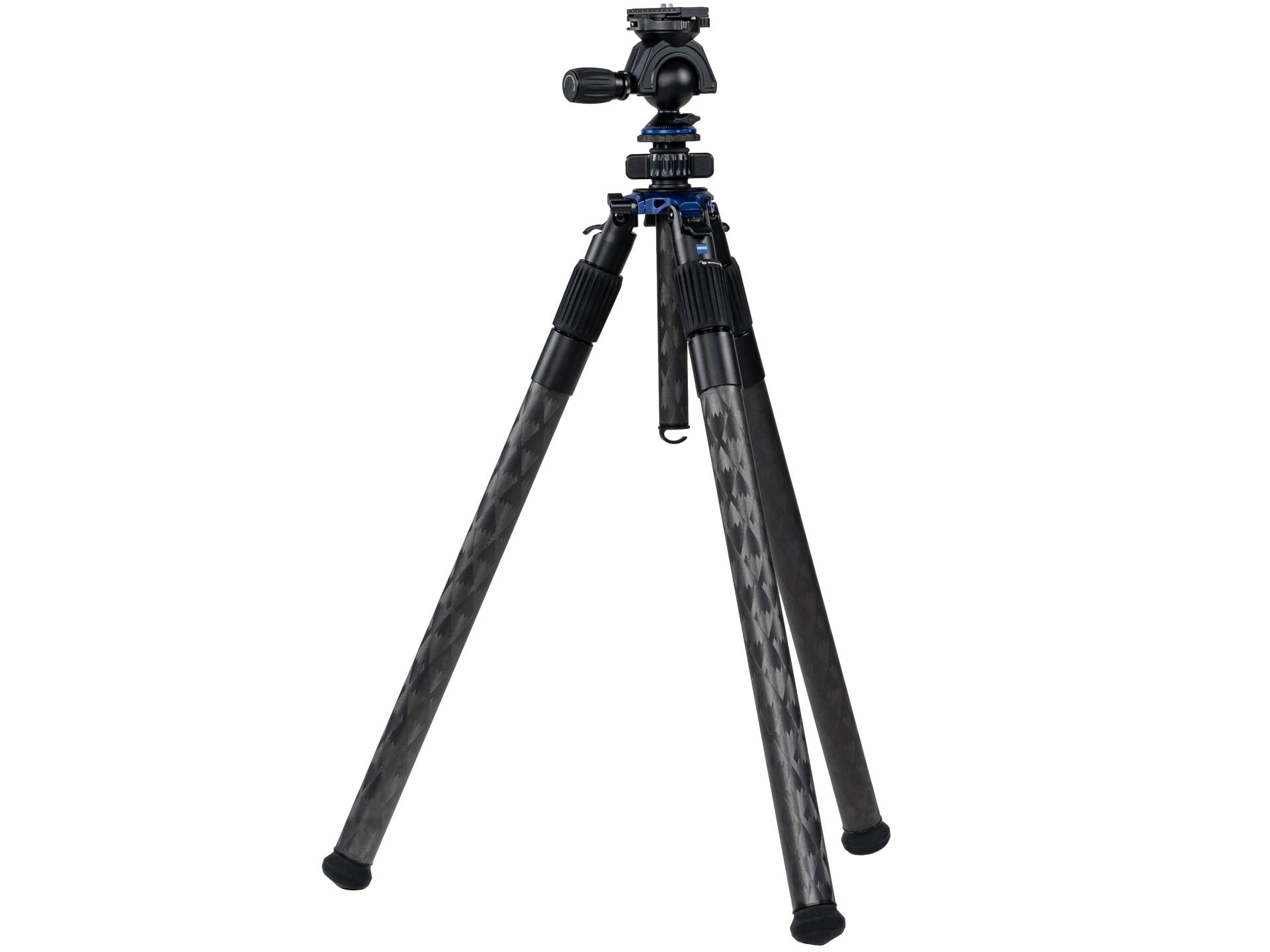

MAX-DUTY V

The MAX-DUTY V includes Ballhead V-60 (Versatile), having 115 degrees of adjustment. This provides a greater amount of tilt angle adjustments over multiple compound directions.

Carbon fiber tripod with adjustable legs and a fluid pan head, designed for ZEISS optical equipment.
Carbon fiber tripod with adjustable legs and a fluid pan head, designed for ZEISS optical equipment.

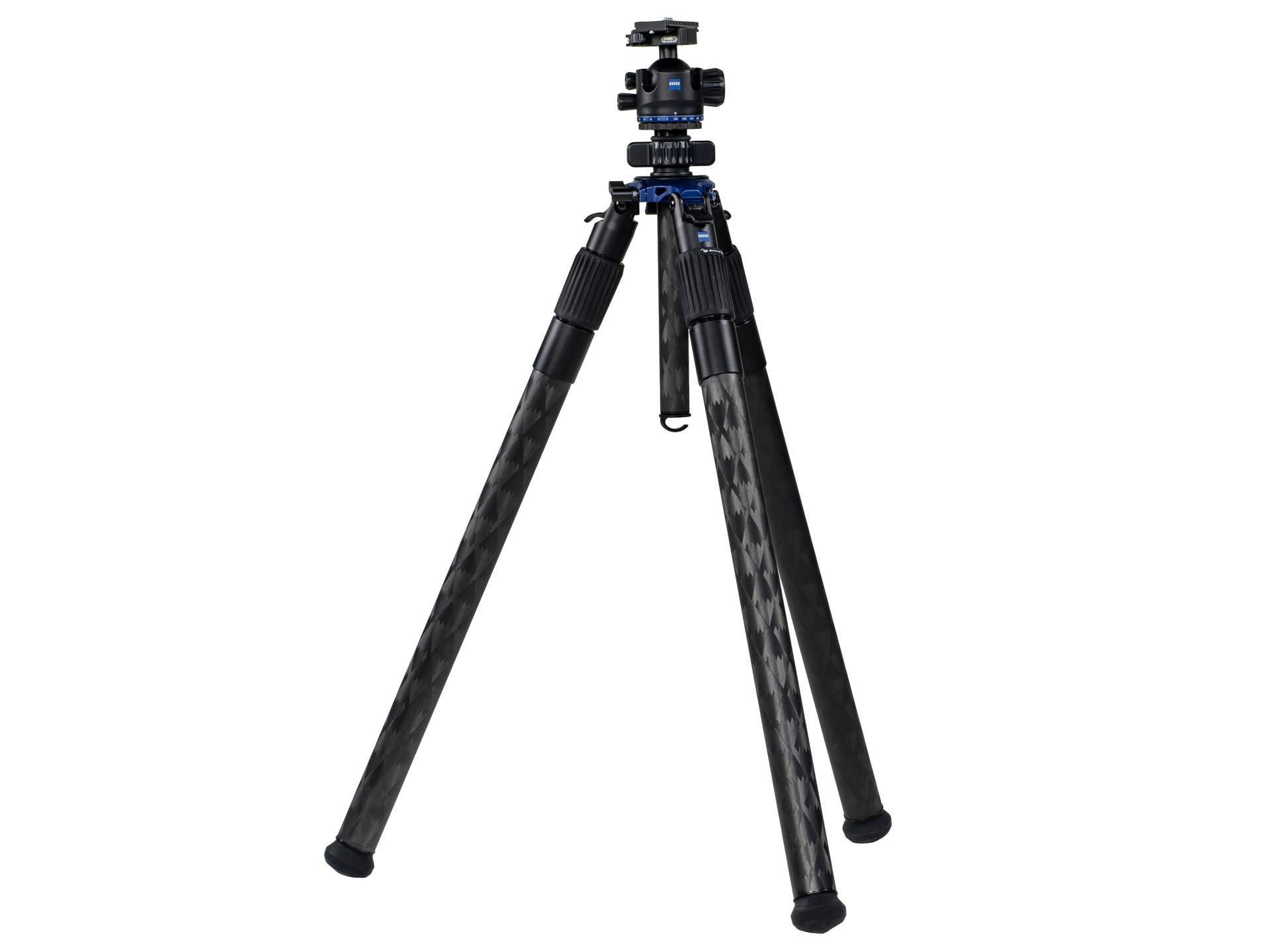

MAX-DUTY L

The MAX-DUTY L comes with Ballhead L-55 (Low Profile) allowing adjustments up to 90 degrees. The lower profile of the head provides more overall stability. It is 3 cm | 0.8 inches shorter at full length than the V model, and weighs 0.2 kg | 0.5 lbs less.

Introduction Video

ZEISS Pro-Series Tripod Kit - MAX-DUTY for Precision Rifle Competition

In this video, our competitors dive into the features and benefits of the Pro-Series Tripod Kit - MAX-DUTY, designed for unmatched stability and versatility in precision rifle shooting. This advanced competition-ready tripod comes equipped with a highly versatile ballhead, a removable center column, and essential accessories – all bundled together for a seamless purchase experience.

A man is using ZEISS optics mounted on a tripod while aiming outdoors under a clear blue sky.

Exceptional Stability

  • Optimized 44 mm carbon-fiber leg diameter (36/40/44 mm)
  • Large, thread-in rubber feet for stay-in-place footing
  • Multi-angle leg positions consisting of 24, 55, and 85 degrees
  • Multiple adjustments for hassle-free stability

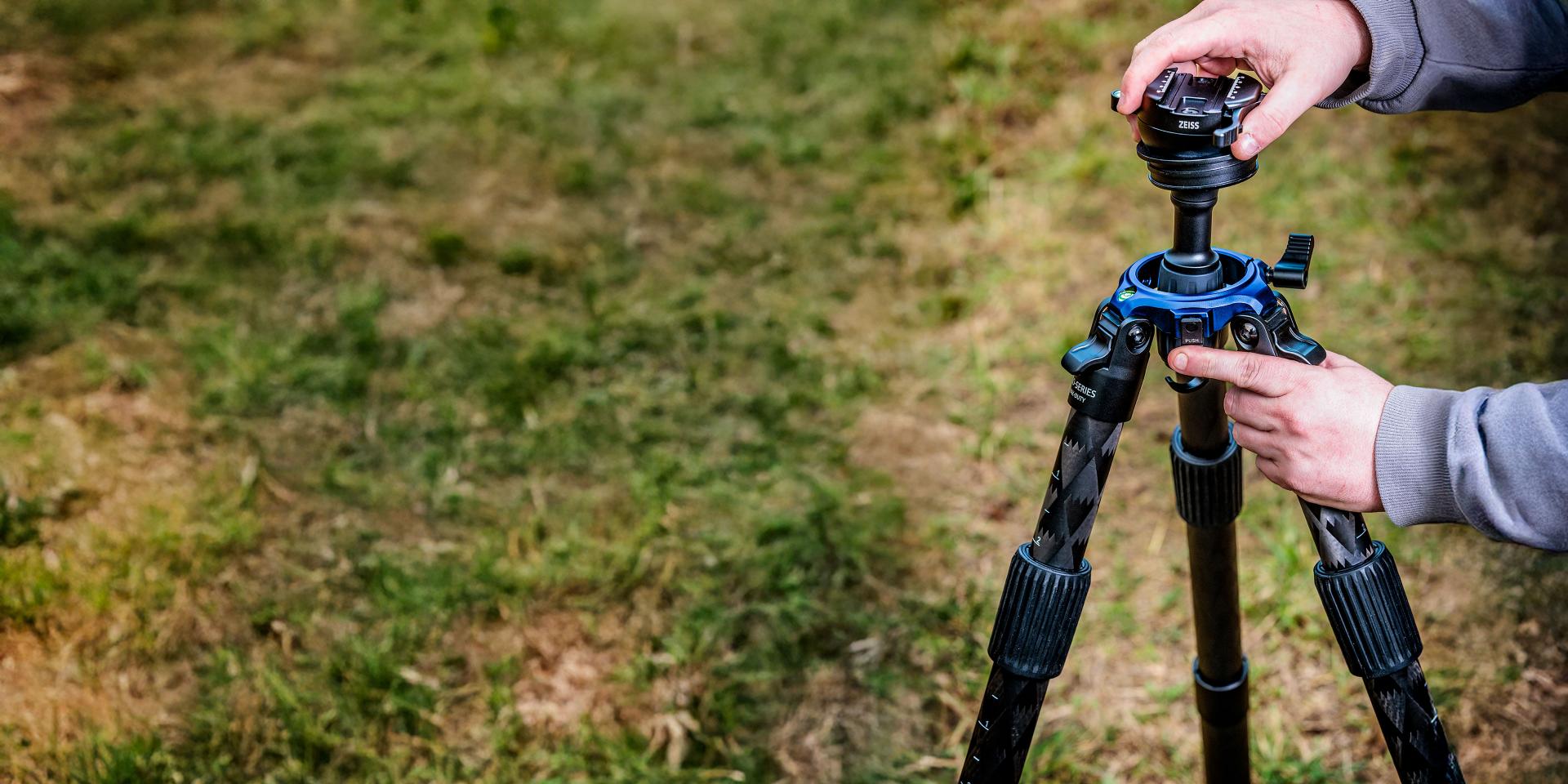

Person adjusting the head of a professional tripod setup on grass, with visible blue ZEISS components.

Fast & Easy Setup

  • Inverted 3-section leg design for ultimate compactness
  • Single-point leg adjustments with extended Twist-Locks
  • Modular, open apex system for maximum versatility
  • Removable through-the-center column for easy height adjustments
  • Easy-press leg adjustment mechanism
A man lies prone in a grassy field aiming a rifle equipped with a ZEISS scope, with a forested landscape in the background.

Robust Design

  • Machined aluminum frame and joints
  • Black, anodized finish
  • 10-layer, matrix-pattern, heavy-duty carbon fiber legs
  • Laboratory and field tested via thousands of cycles and various extreme environmental conditions

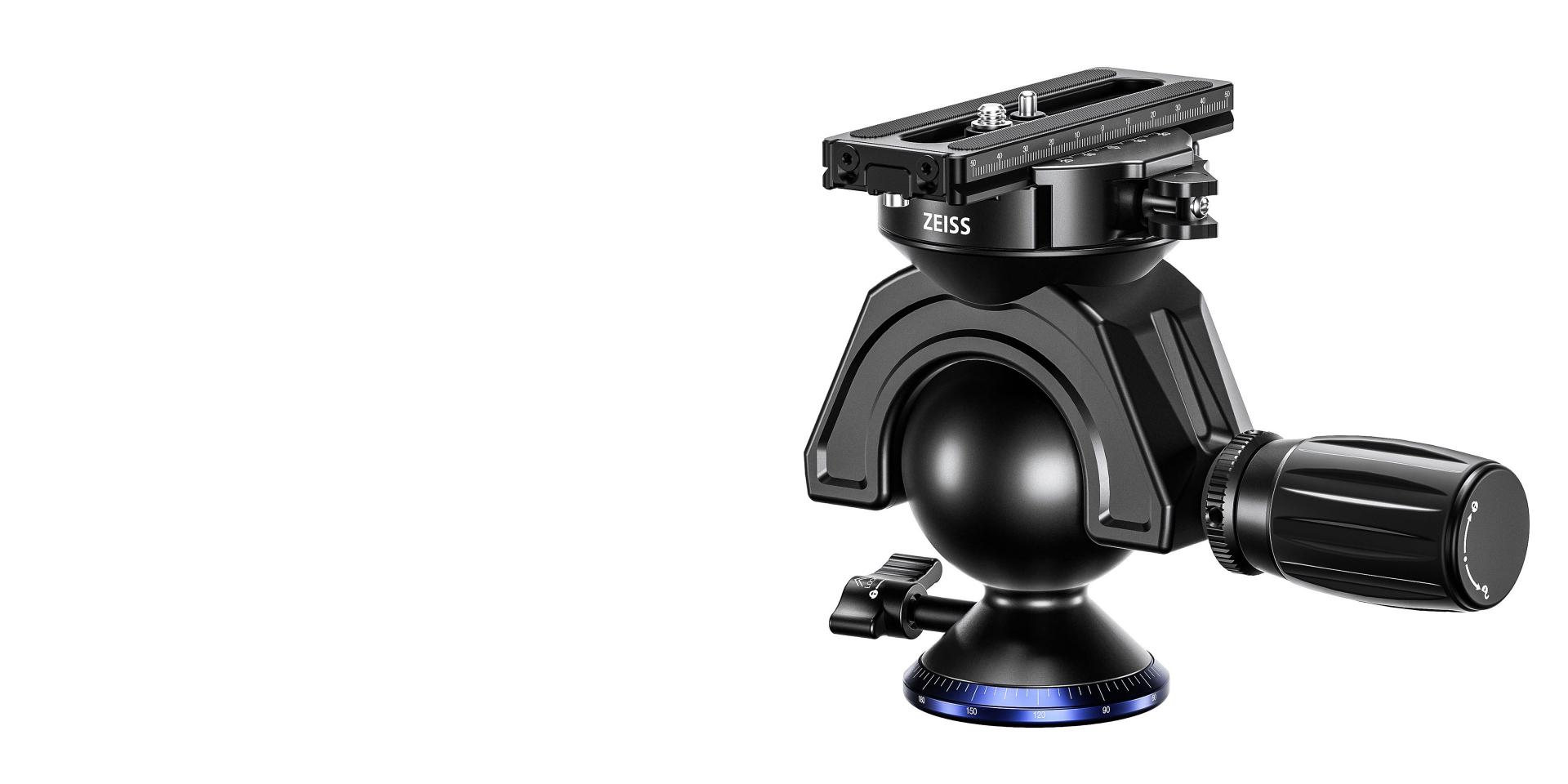

Black ZEISS tripod ball head with adjustable knobs and mounting plate, displayed on a white background.

Secure Connection

  • Arca-Swiss top mounting system
  • 3/8” Thread-on head
  • 1/4-20 extended balance plate with rubberized anti-slip strips
  • Strong, adjustable, ergo-friendly clamps and knobs

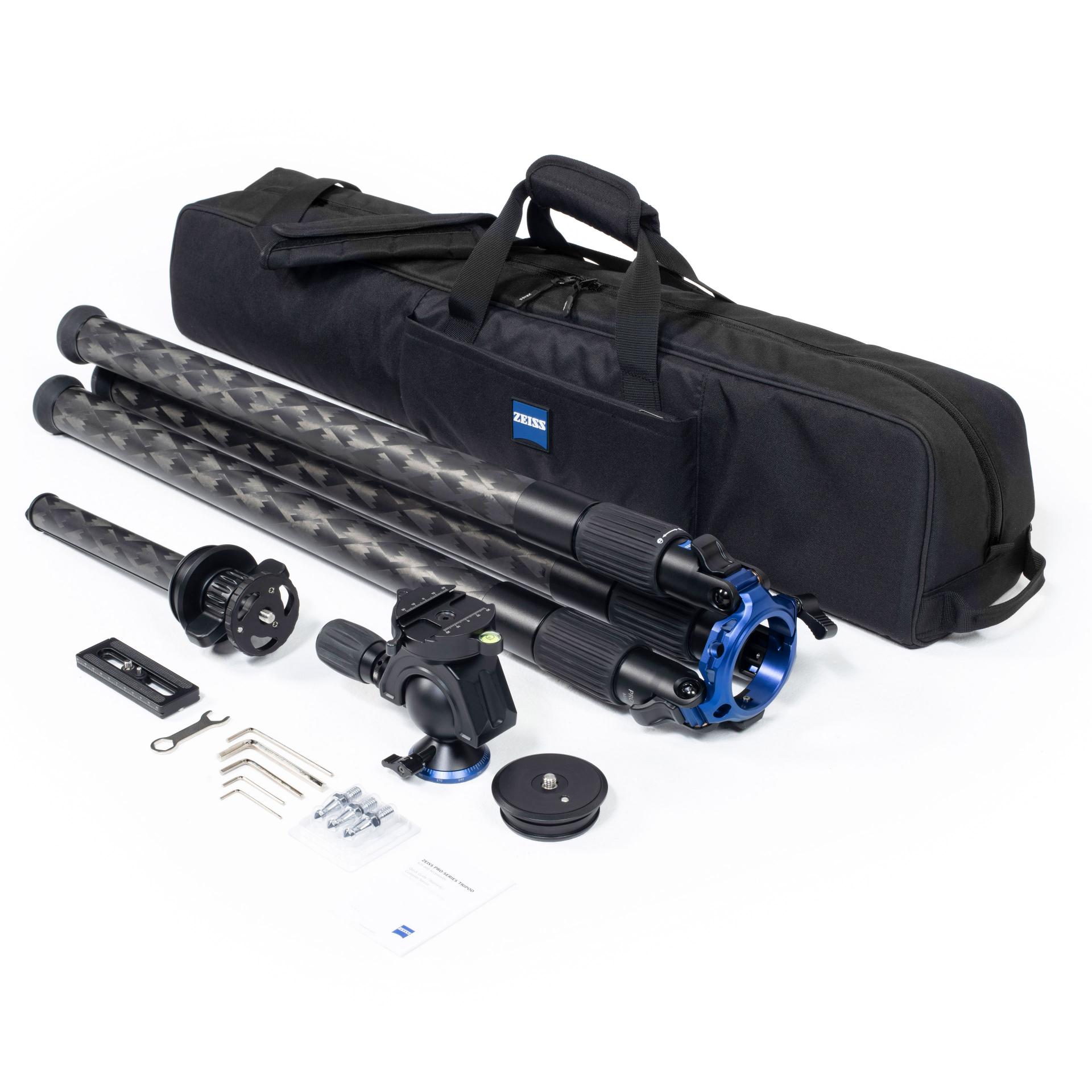

  • Carbon fiber tripod kit with multiple components, including a tripod head, mounting accessories, instruction manual, and a black carrying case featuring the ZEISS logo.

    With Ballhead V-60

  • Camouflaged ZEISS trail camera with a large external antenna, shown mounted inside an open protective case.

    With Ballhead L-55

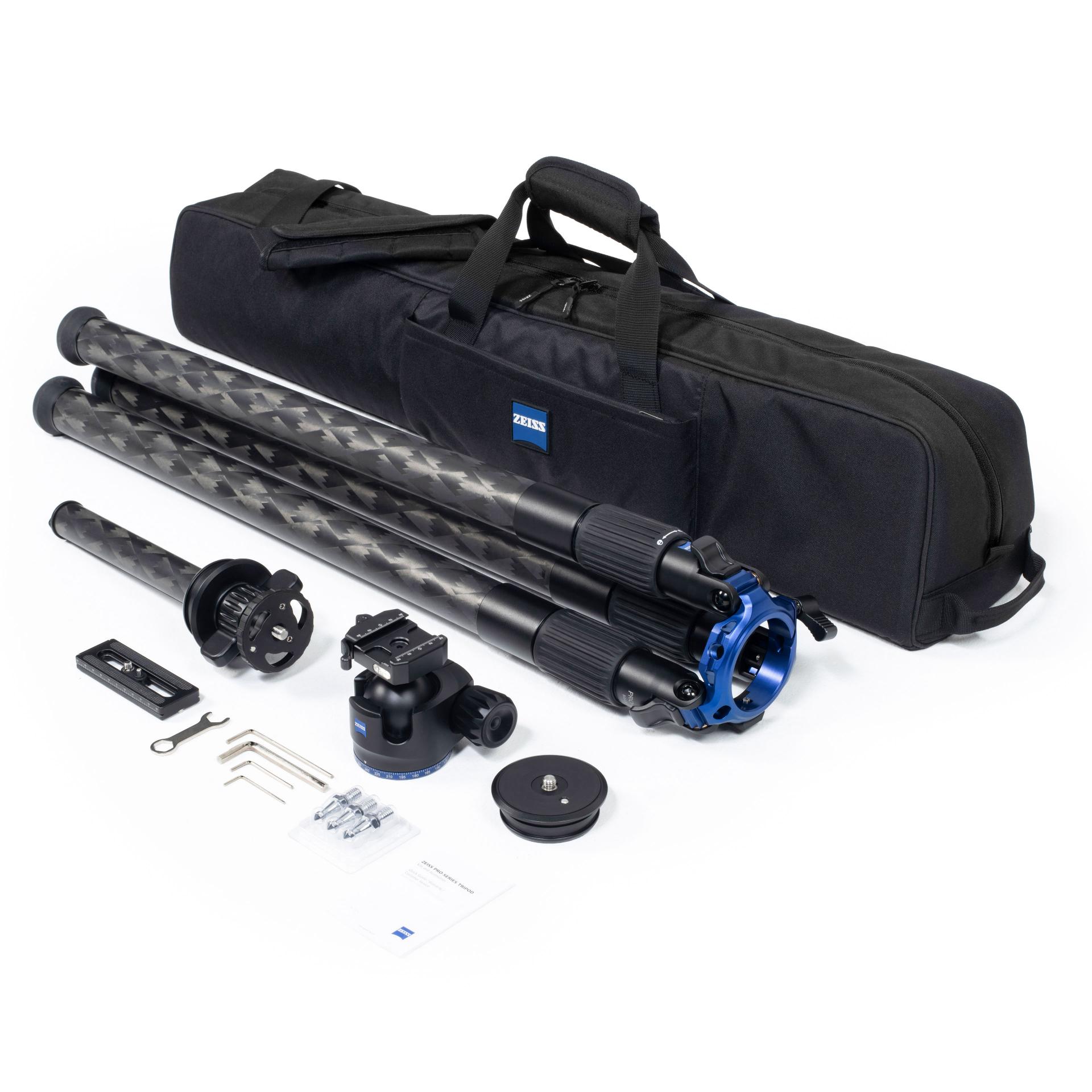

What's included in the kit?

  • MAX-DUTY Tripod
  • Ballhead V-60 or Ballhead L-55
  • Removable Center Column
  • Flat Plate Adapter with 3/8” Stud
  • 1/4-20 Extended Adapter Plate
  • Tripod Bag with Shoulder Strap
  • Tool Kit
  • Spiked Feet
  • Quick Guide

Technical Data

ZEISS Pro-Series Tripod Kits
  • Head Type

    Ballhead V-60

    Weight (No Head, No Center Column)

    4.0 kg | 9.0 lbs

    Weight (With Head, No Center Column)

    5.2 kg | 11.4 lbs

    Weight (With Head, With Center Column)

    5.5 kg | 12.1 lbs

    Extended Height (No Head)

    173 cm | 67.9"

    Extended Height (With Head)

    187 cm | 71.5"

    Compressed Length (With Head, With Center Column)

    101 cm | 39.8"

    Maximum Load

    30 kg | 66 lbs

    Leg Tube Diameters

    44 mm | 40 mm | 36 mm

    Leg Angles

    24° | 55° | 85°

    Leg Sections

    3

    Locking Mechanism

    Twist Lock

    Center Column

    Extendable and Detachable

  • Head Type

    Ballhead L-55

    Weight (No Head, No Center Column)

    4.0 kg | 9.0 lbs

    Weight (With Head, No Center Column)

    5.0 kg | 11.0 lbs

    Weight (With Head, With Center Column)

    5.3 kg | 11.8 lbs

    Extended Height (No Head)

    173 cm | 67.9"

    Extended Height (With Head)

    184 cm | 69.7"

    Compressed Length (With Head, With Center Column)

    99 cm | 38"

    Maximum Load

    30 kg | 66 lbs

    Leg Tube Diameters

    44 mm | 40 mm | 36 mm

    Leg Angles

    24° | 55° | 85°

    Leg Sections

    3

    Locking Mechanism

    Twist Lock

    Center Column

    Extendable and Detachable

10 jaar garantie.

Wanneer u uw statief registreert, activeert u automatisch onze garantie van 10 jaar.

Bijpassende Koppen & Accessoires

ZEISS Pro-Series statiefkits

Black ZEISS tripod head with a precision ball joint, pan handle, and quick-release mounting plate.
Black ZEISS tripod head with a precision ball joint, pan handle, and quick-release mounting plate.

Kogelkop V-60

De ZEISS Pro-Series Ballhead V-60 is uiterst veelzijdig en biedt een breed scala aan kantelhoeken en samengestelde aanpassingen. De kantelhoek van maximaal 115° is soepel en nauwkeurig, zodat u elke keer de perfecte hoek kunt vinden. De weerstand van de kopbeweging kan eenvoudig worden aangepast aan verschillende gewichten van diverse gemonteerde apparaten.

Black ZEISS tripod ball head with adjustment knobs, mounting plate, and leveling indicators.
Black ZEISS tripod ball head with adjustment knobs, mounting plate, and leveling indicators.

Kogelkop L-55

Het ZEISS Pro-Series kogelkop L-55 is een populair, betrouwbaar en stabiel kogelkop. Met zijn vertrouwde, low-profile ontwerp biedt het tot 90° totale aanpassing voor gemonteerde apparaten. De kop werkt soepel en nauwkeurig, waardoor het eenvoudig is om de perfecte positie te vinden voor het gemonteerde optiek of apparaat.

Black ZEISS tripod head with a built-in handle grip and quick-release plate attachment.
Black ZEISS tripod head with a built-in handle grip and quick-release plate attachment.

Nivelleerkop Q-75

De nivelleerkop Q-75 biedt snelle toegang. Hij is compatibel met Arca-Swiss en wordt geleverd met een adapter van 75 mm. De afstelling met één hendel is voorzien van een verlengde haak voor extra gebruiksgemak.

Black padded neck strap with adjustable side straps and a central ZEISS logo on the front.
Black padded neck strap with adjustable side straps and a central ZEISS logo on the front.

Accessoire zak

De ZEISS accessoire zak is ontworpen om extra gewicht toe te voegen aan uw statief voor meer stabiliteit, vooral in winderige omstandigheden of bij gebruik van zwaardere apparatuur. Hij dient ook als praktische oplossing voor het tijdelijk opbergen van extra apparatuur.

Precision camera mounting rail system with integrated spirit level and adjustable components, featuring the ZEISS logo.
Precision camera mounting rail system with integrated spirit level and adjustable components, featuring the ZEISS logo.

Multi-apparaatrail

De ZEISS multi-apparaatrail is een veelzijdig accessoire waarmee u meerdere apparaten tegelijkertijd op uw statiefkop kunt bevestigen. Dankzij de compatibiliteit met Arca-Swiss en 1/4-20 kunnen verschillende apparaten, zoals afstandmeters, telescopen, verrekijkers, warmtebeeldcamera's en meer, veilig worden bevestigd. Dit maakt het de ideale oplossing om de functionaliteit en efficiëntie van uw statiefopstelling te maximaliseren.

Black ZEISS mounting clamp with adjustable knob and serrated gripping jaws, designed for secure attachment.
Black ZEISS mounting clamp with adjustable knob and serrated gripping jaws, designed for secure attachment.

Verrekijker klem

De ZEISS verrekijker klem is geschikt voor de meeste verrekijkers van alle maten en merken, ook die zonder statiefbevestiging. De klem heeft een ergovriendelijke verstelknop die speciaal is ontwikkeld voor snelheid en gebruiksgemak. De oversized verstelling werkt goed met koude of gehandschoende handen en zorgt voor een zeer veilig bevestigingssysteem. In combinatie met een Arca-Swiss compatibel kogelkop naar keuze maakt dit accessoire een stabiele observatie mogelijk, zelfs onder moeilijke omstandigheden.

Black ZEISS-branded optical instrument accessory with ergonomic grip and adjustment knob, standing upright on a flat base.
Black ZEISS-branded optical instrument accessory with ergonomic grip and adjustment knob, standing upright on a flat base.

Statief-naar-verrekijker-adapter 1/4-20

Met de ZEISS statief-naar-verrekijker-adapter 1/4-20 kunt u uw verrekijker snel en eenvoudig op het statief bevestigen. De adapter heeft een Arca-Swiss-interface die zorgt voor een veilige verbinding met uw statiefkop. Het ontwerp biedt een comfortabele grip voor moeiteloos gebruik en controle. De adapter is compatibel met de volgende ZEISS Verrekijkers: ZEISS Victory SFL, ZEISS Conquest HDX, ZEISS Conquest HD, ZEISS Terra ED 42.

Black ZEISS camera mounting clamp with textured grip surfaces, adjustment knob, and central screw hole.
Black ZEISS camera mounting clamp with textured grip surfaces, adjustment knob, and central screw hole.

Geweerklem

De ZEISS geweerklem biedt een eenvoudige, snelle en veilige bevestiging voor uw geweer. Het helpt bij de stabiliteit van het geweer, het volgen en de precieze plaatsing van het schot in verschillende schietsituaties. De ergovriendelijke knop biedt een verbeterde grip en controle over de aanpassing om verder te zorgen voor een veilige en betrouwbare steun voor het geweer. Daarnaast vinden eindgebruikers dit accessoire ook nuttig op verschillende manieren wanneer ze een specifiek voorwerp in het veld moeten vastzetten of ondersteunen.
