Connection Elements From ZEISS

Variety for your Stylus System

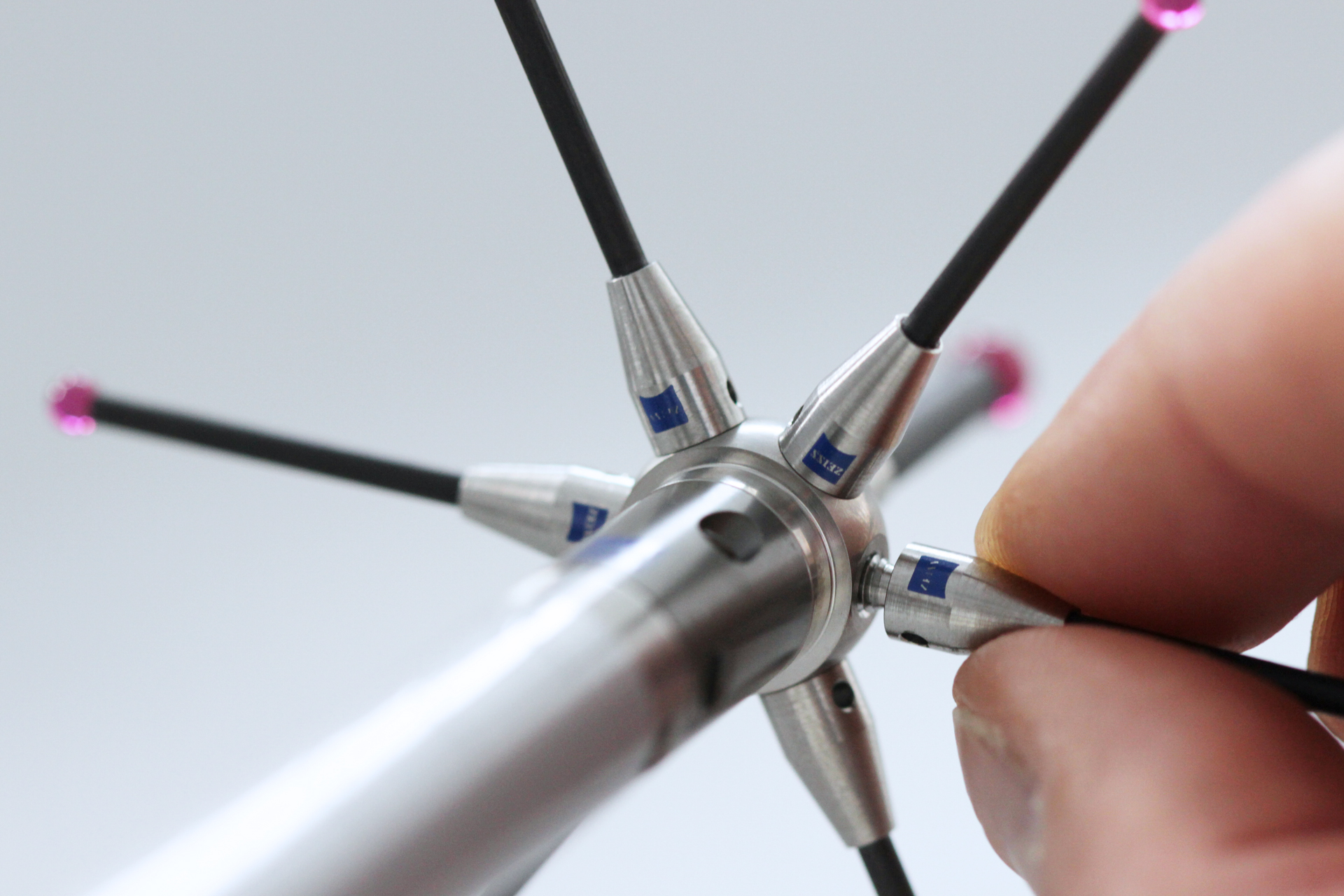

ZEISS offers a wide range of connection elements for constructing complex stylus systems. Our portfolio includes solid cubes, angle pieces, and adjustable knuckle and rotary elements.

Informatie downloaden

Shop now

Simplify your system with fewer connections
Optimize stiffness for serial measurements
Enhance flexibility with movable elements

Connection elements

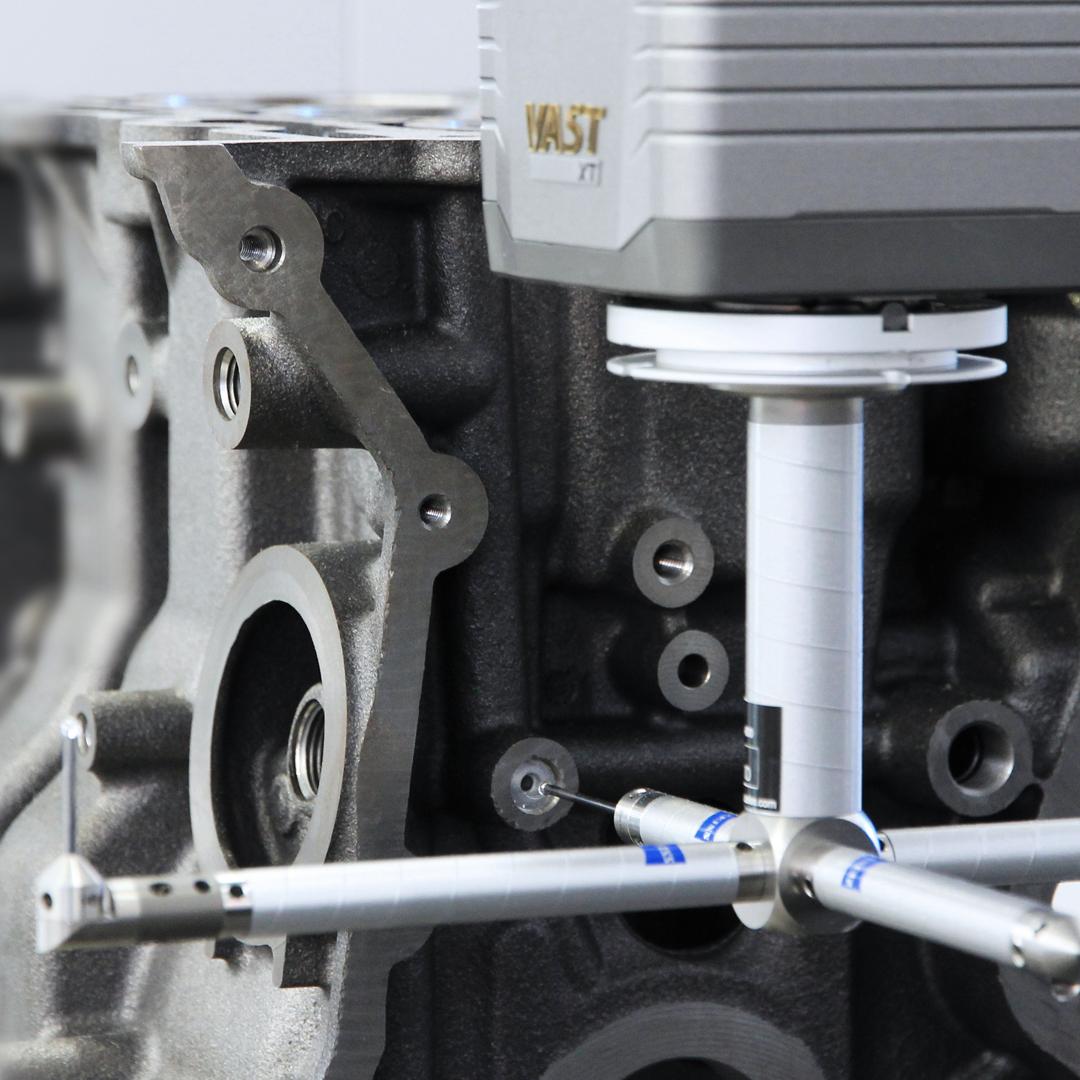

Constructing stylus systems

There are many ways of combining elements. Please observe the following:

As few connection points as possible

A stylus system should consist of as few connection elements as possible, since each interface can be solved. This can lead to a loss of stiffness. If you can combine several elements in one element, for example an extension and a cube, this is always preferable.

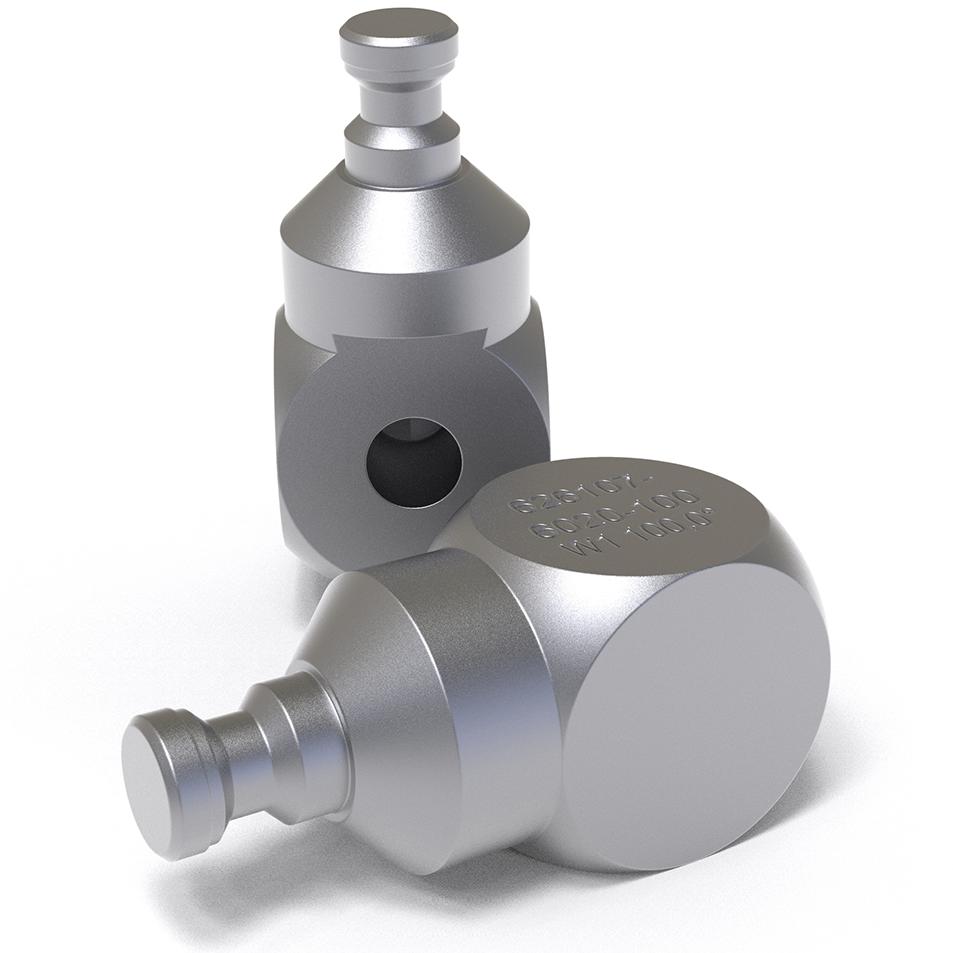

Fixed connections for serial measurements

For serial measurements, fixed connections, such as milled angle pieces, are to be preferred, since the angles do not change as a result of continuous operation.

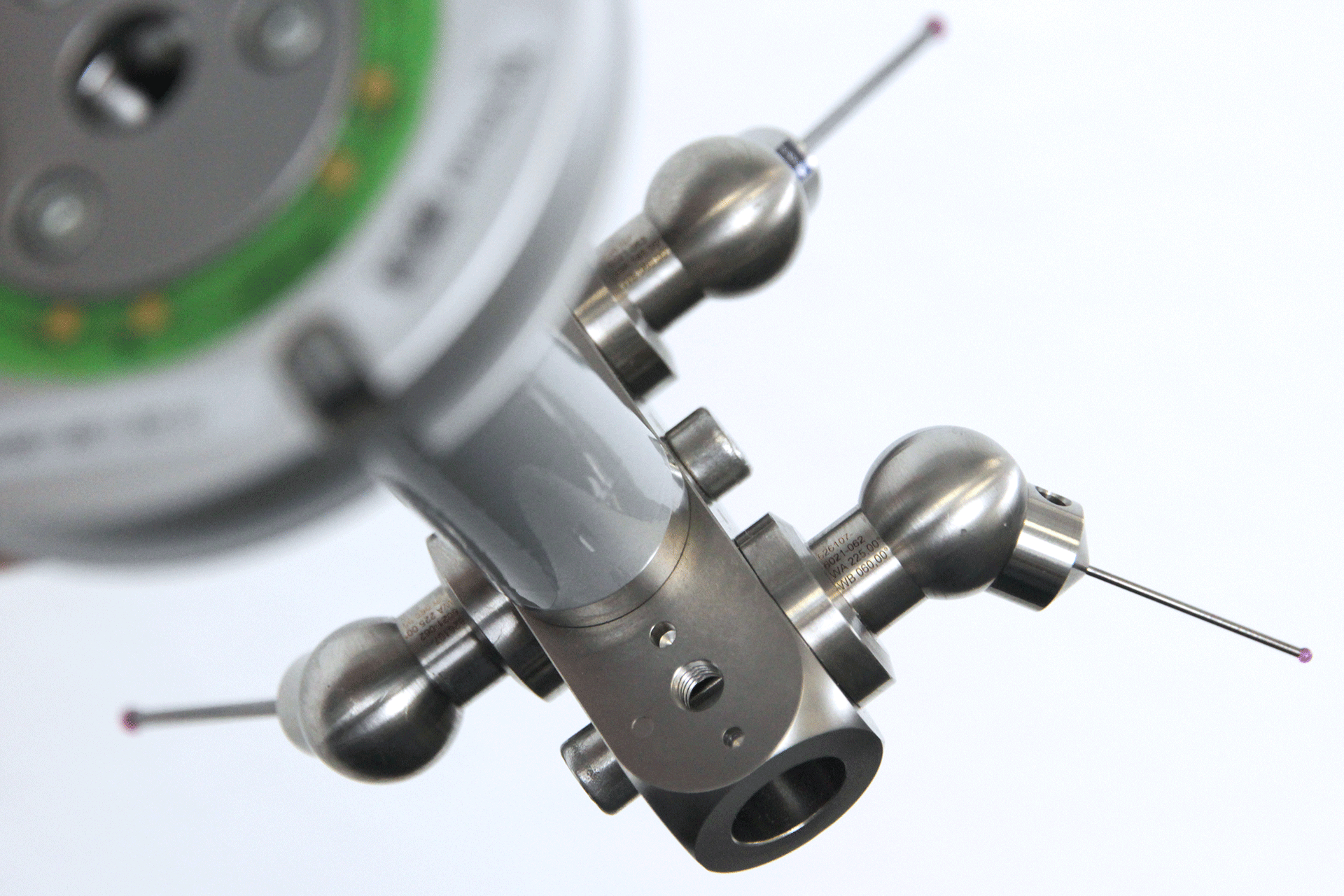

Movable elements for maximum flexibility

Movable elements, such as knuckle elements, increase the flexibility of a stylus system. Any angle can be set repeatably. An integrated taper mount also allows rotational adjustment of solid angles. This maintains the flexibility of the stylus system.
